Baja LP:9 Sprinter Roof Rack
Price range: $7,500.00 through $9,000.00
-
Built to order in 6–8 weeks
Prefer monthly payments? Choose “Electronic invoice by email” at checkout to pay over time with Affirm, subject to approval.
Not all roof racks are created equal. This one sets the standard. The Baja LP:9 Sprinter Roof Rack is Rugged’s Flagship. The front aperture is sculpted to follow the Sprinter’s roofline, housing five to six Baja Designs LP9 LED lights in a configuration that reads less like accessories and more like architecture. The deck stretches the full length of the roof at 60 inches wide: the largest usable platform available for the Mercedes Sprinter.
How it gets on your van
- Installed by us at our Hesperia, California shop — $350, chosen in the configurator.
- Shipped to your builder by LTL freight on a custom pallet — most racks go straight to the client’s Sprinter upfitter or a trusted local shop. Get your freight estimate before you order: call (442) 800-5550 with your ZIP and we’ll quote it the same day. We shop multiple carriers and charge the lowest rate available when your rack ships. Freight prices change, so your final cost may be higher or lower than the estimate. Business addresses usually ship for less.
- Reserve your build slot with a 50% deposit (choose “Electronic invoice by email” at checkout), or pay in full.
- Balance at completion — the remaining 50% is due when your rack is finished, before shipping or installation. Questions first? Call (442) 800-5550.
RACK DETAILS:
Sculpted and curved to follow the Sprinter’s roofline. Engineered to house five to six Baja Designs LP9 light pods
Includes 2 rear welded light tabs

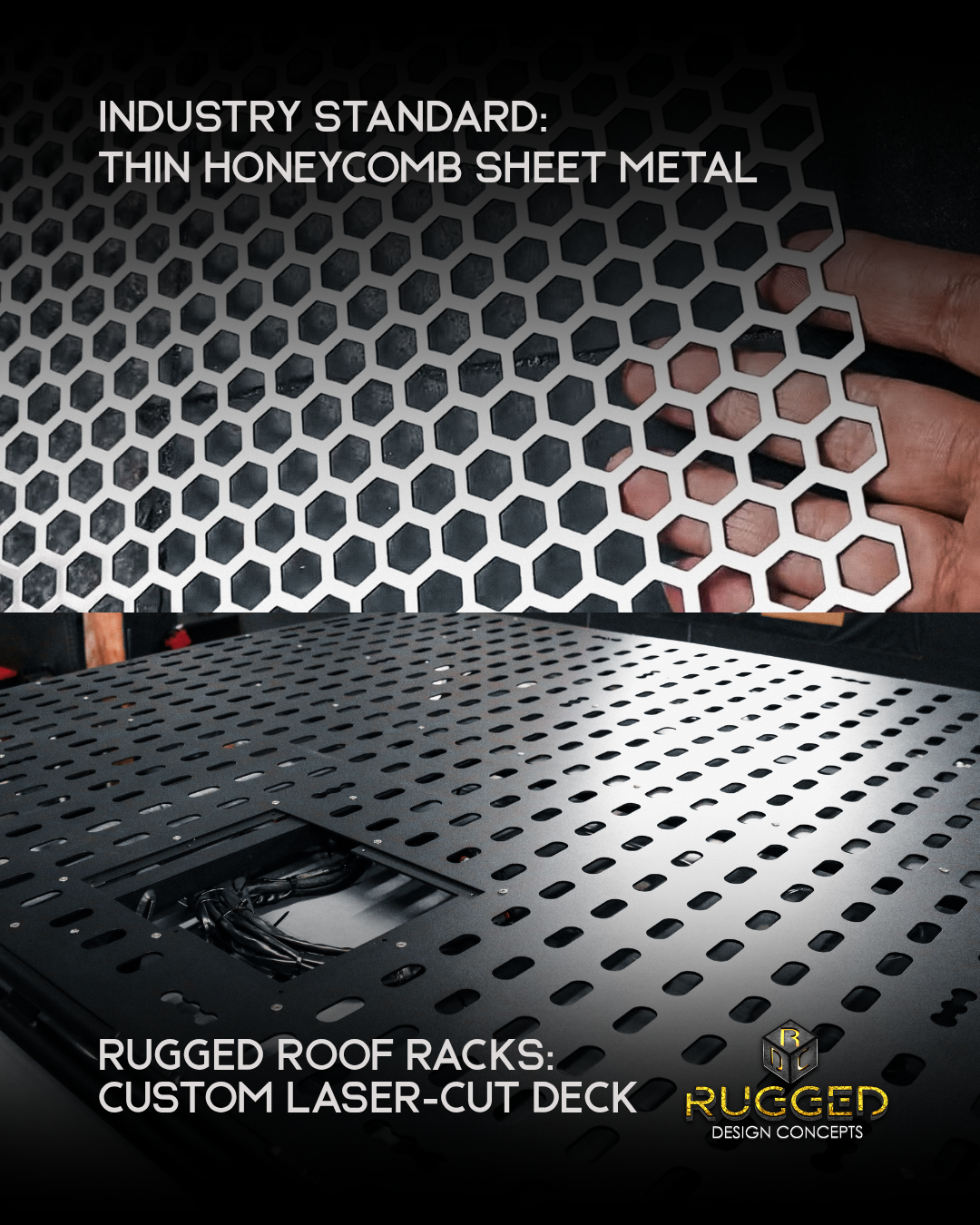

Largest usable deck plate in the industry. 60 inches wide on all models. Full-coverage walkable aluminum laser-cut deck with RDC’s signature oval pattern with integrated L-track. Never off-the-shelf honeycomb sheet metal you’ll find in most Sprinter racks.

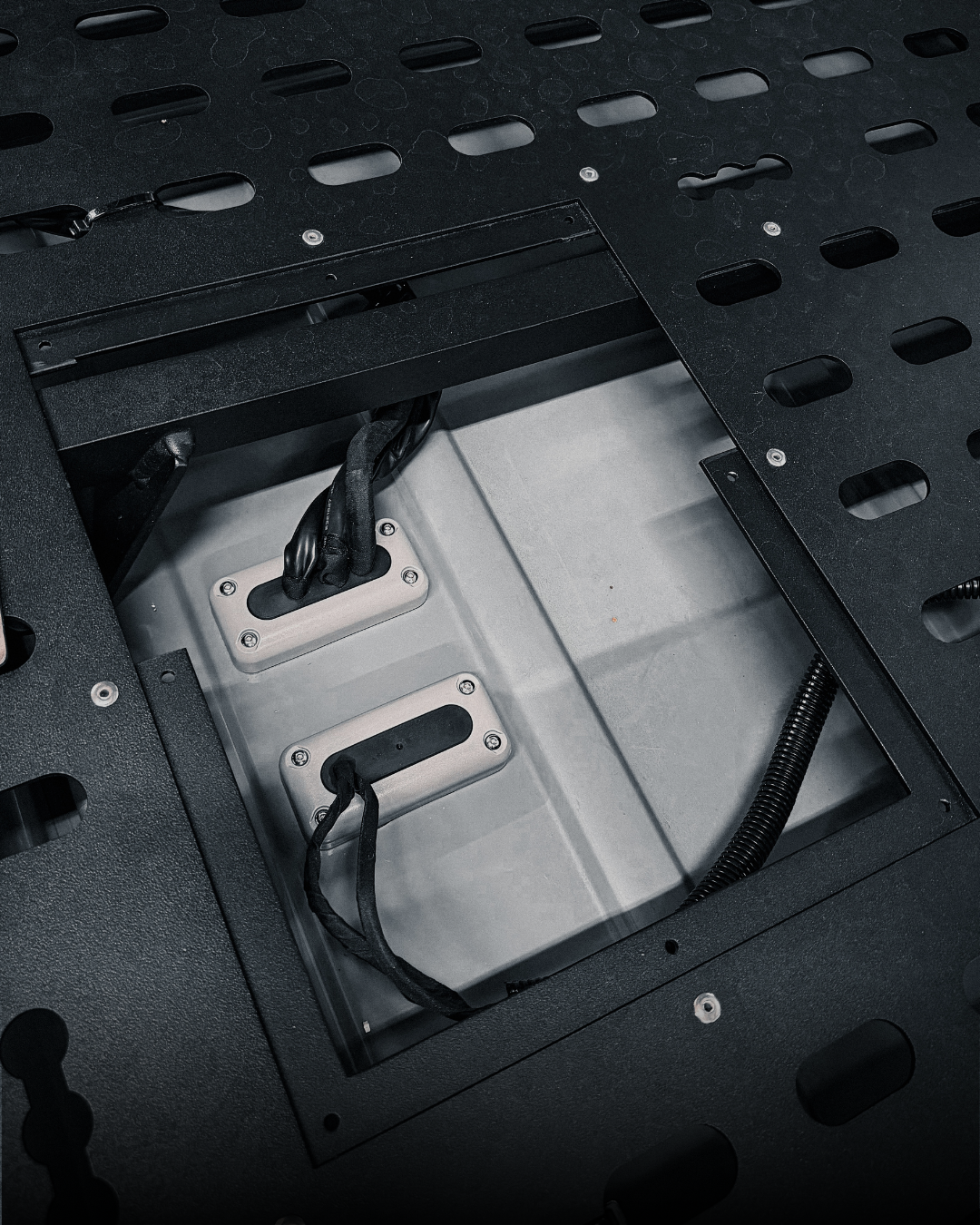

Depending on your roof configuration, each rack comes with up to 2 access panels whether it’s for a 144 , 170 or 170 EXT wheelbase. Located on the driver’s side. Delivered uninstalled so wiring and roof layout can be finalized first. Installed for long-term use, with future serviceability built in.
Ultra-low profile sits tighter to the roofline than almost any rack engineered for a Sprinter. Reduces wind drag. Keeps the van’s silhouette clean and proportional even at full build spec. A class of its own.
One vent or AC cutout is included at no additional cost. Additional cutouts available at $150 each. Cutout dimensions and placement confirmed at time of order using the RDC cutout form.
Compatible with 2007 to current Mercedes Sprinter, factory roof rails. High roof only; Not available for low roof configuration — have a 144 Low Roof? The Baja LP:6 is the rack built for it. Available for 144, 170 regular wheelbase, and 170 extended.
All aluminum throughout. TIG welded in-house by Dennis. Powder coated black: same process and spec as every RDC product. Built to order, not warehoused. Every rack is a single production run.
SPECIFICATIONS:
Material
Aluminum
Finish
Powder coat · Black
Weld Process
TIG · In-house by Dennis
Deck Width
60 inches (all models)
144 WB Square Footage
Over 62.5 Square feet of usable deck space.
170 Square Footage
Over 77 Square feet of usable deck space.
170 Ext Square Footage
Over 84 Square feet of usable deck space.
Light Pods
5–6 Baja Designs LP9
Included Cutouts
1 free · Additional $150 ea.
Roof Height
High Roof Only · 144 Low Roof? See the Baja LP:6
Compatibility
2007+ Sprinter · Factory rails or similar (confirm at the time of order)
Models
144 HR · 170 WB · 170 EXT
Lead Time
Approximately 6 to 8 weeks from deposit received. Production begins once deposit and cutout form are confirmed. This is not a stocked item, it is fabricated for you.
Deposit Required
50% Deposit to secure build slot on fabrication schedule.
Shipping
Freight estimated to your ZIP before you order — call (442) 800-5550 for a same-day estimate. Final freight is the lowest carrier rate when your rack ships and may be higher or lower than the estimate. Free pickup at our Hesperia, California shop.
Origin
Handcrafted in Hesperia, CA 100% USA-Made
“The standard is not claimed. It is built, one rack at a time.” – Rugged
| SELECT WHEELBASE: | 144 High Roof, 170 Regular WB, 170 Extended WB |
|---|
